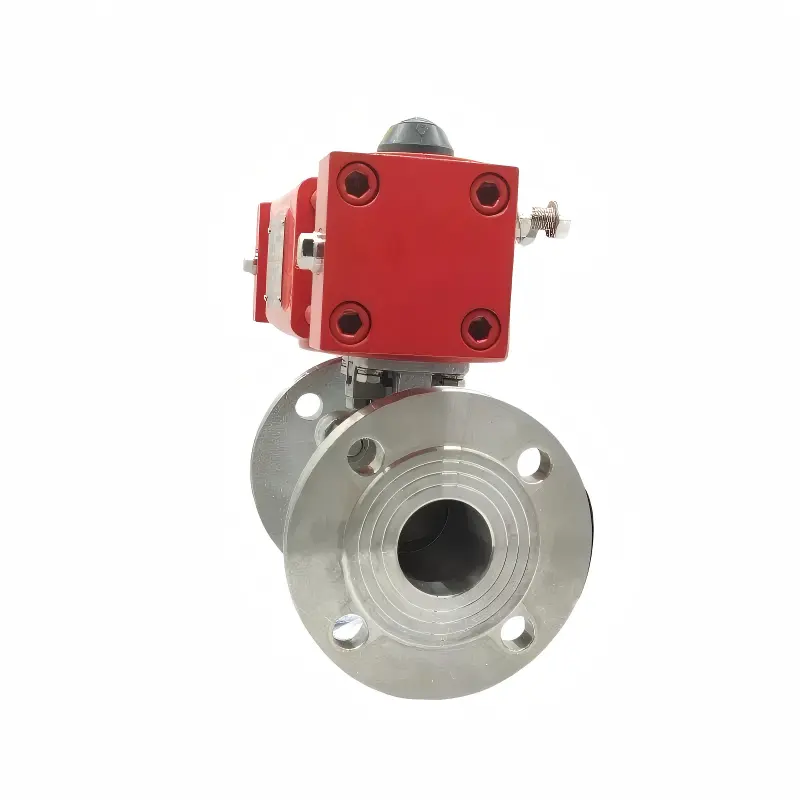

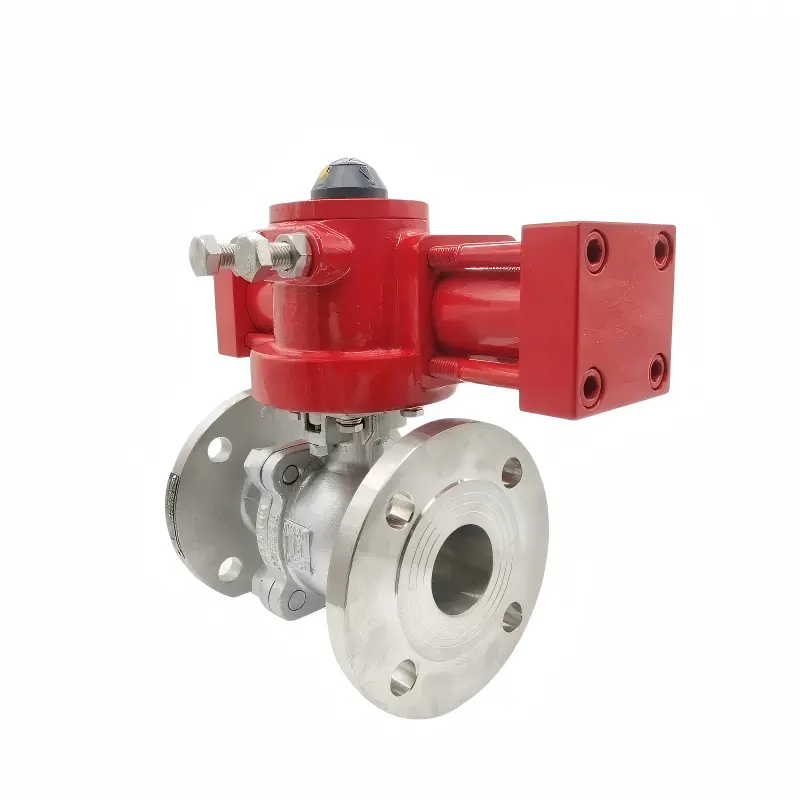

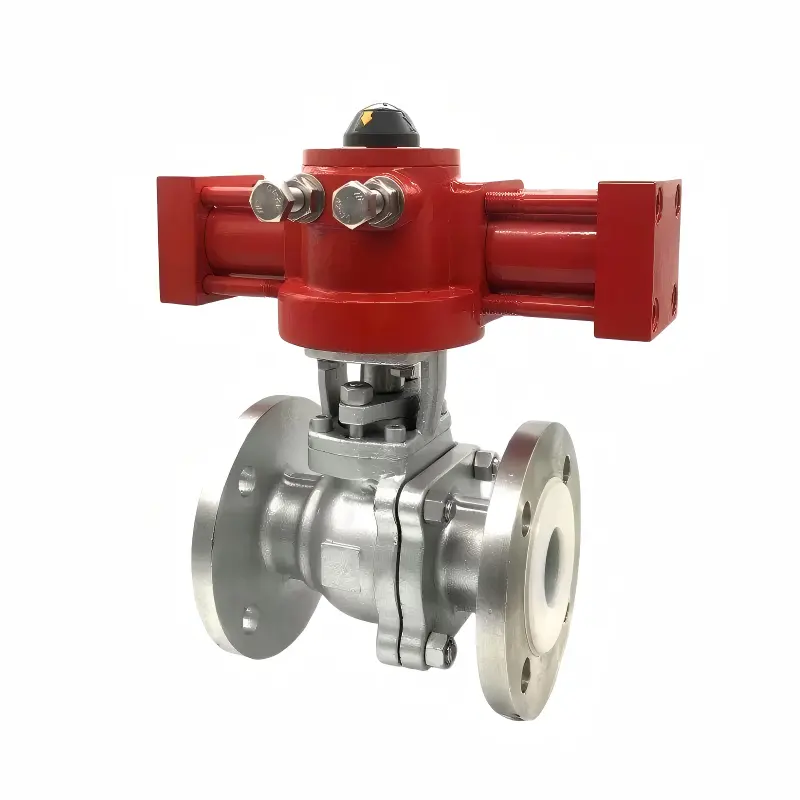

DELCO MYD-2PF Hydraulic Stainless Steel Flanged Ball Valve for Water, Oil & Gas Service
The DELCO MYD-2PF hydraulic stainless steel flanged ball valve delivers reliable automated on/off and throttling for water, oil, gas, and mild-corrosive service. Its CF8/CF8M stainless steel body with PTFE seat resists corrosion and handles -20°C to 180°C , driven by the MYD-series hydraulic gear & rack actuator (2.0–16 MPa supply, output torque 28–25,340 Nm across MYD32–MYD160). Features include ±5° fine-tuning, bottom manual override, top-mounted limit/travel/proximity switches for remote operation, ISO 5211 mounting, and compliance with API 608 / ASME B16.5 / EN 1092-1. Manufactured under ISO 9001 / CE certification for global water treatment, oil & gas, petrochemical, and general industrial applications.
Size Range: DN15–DN300 , PN16/PN25/PN40
Selection Manual
Key Features
The DELCO MYD-2PF pairs a CF8/CF8M stainless steel body with a PTFE-seated ball (DN15–DN300, -20°C to 180°C) and the MYD-series hydraulic gear & rack actuator (2.0–16 MPa, 28–25,340 Nm), delivering reliable, corrosion-resistant automated flow control for water, oil, gas, and industrial service — with precise ±5° control, manual override, remote-ready switching, ISO 5211 mounting, and global API 608 / ASME B16.5 / EN 1092-1 compliance.
✅Corrosion-resistant stainless steel body — CF8/CF8M (304/316) stainless steel with PTFE seat resists rust, mild acids, and harsh media from -20°C to 180°C for long service in water, oil, and gas lines.
✅High-torque MYD hydraulic actuator — Gear & rack transmission with integrated-piston cast carbon steel cylinder, 2.0–16 MPa supply pressure, output torque from 28 Nm (MYD32) to 25,340 Nm (MYD160) — covering DN15–DN300 lines.
✅Precise & fail-safe control — ±5° open/close fine-tuning via adjustment bolts, plus bottom-mounted manual override for emergencies in remote or hazardous areas.
✅Global-standard, remote-ready — ISO 5211 mounting, top-mounted limit/travel/proximity switches for remote operation; design per API 608, flanges per ASME B16.5 / EN 1092-1; manufactured under ISO 9001 / CE certification.
Hydraulic Actuator
Key Application Fields
-
Oil & Gas
DELCO API-certified valves ensuring safety and reliability in demanding high-pressure pipelines. -
Chemical & Petrochemical
DELCO corrosion-resistant solutions tailored for handling aggressive acids and hazardous fluids safely. -
Power Generation
DELCO solutions efficiently withstand extreme high-temperature and high-pressure steam cycles in power plants. -
Food & Pharmaceutical
DELCO sanitary valves with FDA-compliant, crevice-free designs to ensure absolute product purity. -
Water & Wastewater
Durable municipal solutions by DELCO, designed for zero leakage and long-term sustainability. -
HVAC & District Heating
DELCO valves ensure precise flow regulation to optimize energy efficiency in modern buildings.
Browse our case studies or talk directly with our engineers to discuss your application.
Send Your Inquiry
Not sure which valve fits your project? Our engineers provide fast selection support and OEM customization.
For a faster and more precise quotation, kindly include details such as:
- The model or features you are looking for
- Your estimated purchase quantity
- Any OEM / branding requirements
- Target market or application
